What's this?

Aug 27, 2021 4 Replies
Jump to replies (4)

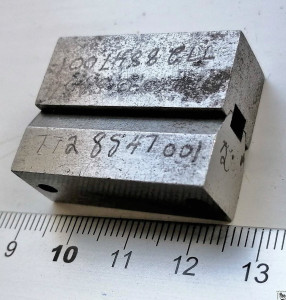

Metal block inscribed 100LH88 CLL and 7T2 8947001, measuring about 4 centimeters long next to a metric ruler. open original image

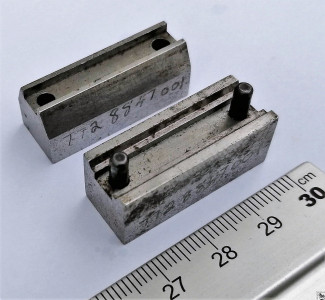

Two metal grooved blocks marked 772 8847 001, one with pins and one with holes, beside a ruler. open original image

Found this in a box of mixed parts and tools from an aviation workshop - they used to service Collins 618T HF radios, amongst others. Why would they have engraved matching serial numbers? Critical component? The parts were partly rusted together but separated quite easily with a dose of releasing fluid. I think it got droppped into box accidently, as it didn't match anything else there. Is it a fly press tool/die of some sort? Best wishes, Tom G4KWL.

formatting link


replying to tomwalter, Randy wrote: I got nothing until I clicked on MORE. My guess: a die or alignment fixture.
